DTECH DT-7451 5 Port HDMI Switch 4K 60Hz – 5 In 1 Out with IR Remote

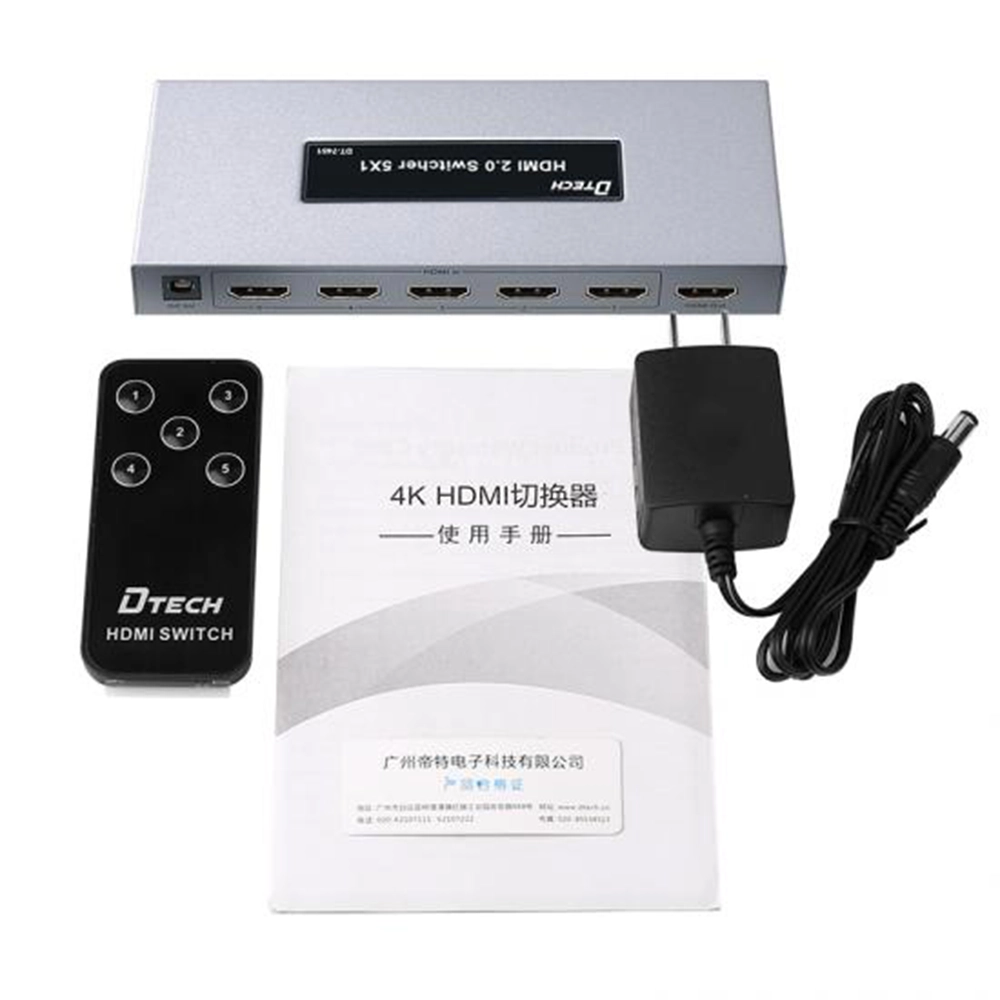

The DTECH DT-7451 5 port HDMI switch connects five HDMI sources to one display, and you change between them with the remote. Media players, PCs, cameras, set-top boxes and games consoles all stay plugged in, so there’s no more swapping cables behind a screen. It supports 4K at 60Hz, carries surround sound formats including Dolby TrueHD and DTS-HD, and comes with a power adapter and IR remote in the box.

Why Choose This 5 Port HDMI Switch

Most displays, projectors and monitors have only one or two HDMI inputs, but meeting rooms, classrooms and lounges usually have more sources than that. Swapping cables by hand wears out ports, interrupts presentations and leads to support calls. This 5 port HDMI switch gives one screen five ready-to-go inputs, so users can choose a source in seconds and the installation stays neat.

• Five sources, one screen: connect up to five HDMI devices to a single display, projector or AV receiver.
• Sharp 4K picture: supports resolutions up to 3840 x 2160 at 60Hz (YUV 4:2:0) and works with lower resolutions for older devices.
• Full surround sound: passes DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby AC3 and DSD audio to your display or sound system.

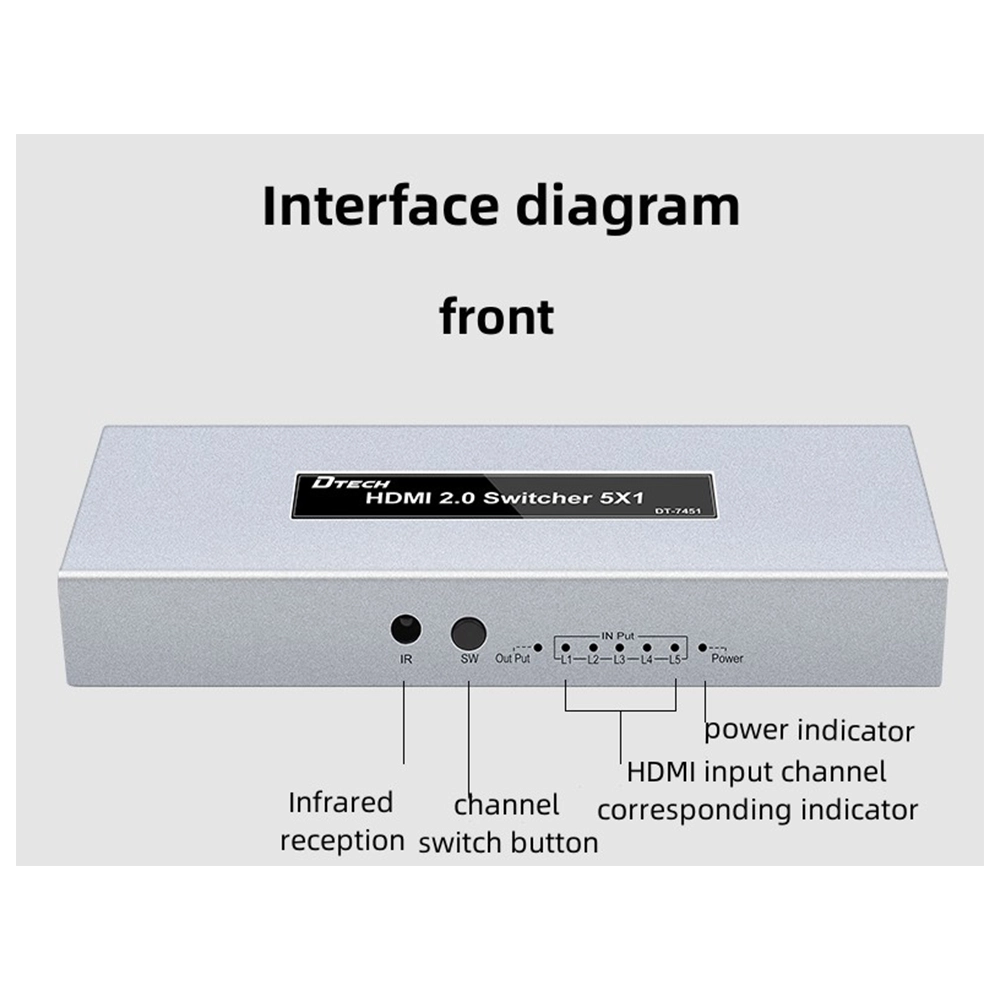

• Remote or button control: switch inputs with the IR remote from across the room, or use the button on the unit.
• Reliable over distance: built-in signal amplification supports input cables up to 10 m and an output cable up to 5 m.
• Plug and play: no drivers or software needed. Just connect, power up and select a source.

Where to Use the DT-7451 5 Port HDMI Switch

System integrators, AV installers, facility managers and corporate IT teams use an HDMI switcher wherever several sources share one display. Typical applications include:

• Meeting rooms and video conferencing: connect a room PC, a guest laptop, a conferencing codec and a media player to one screen.
• Classrooms and training rooms: switch between a teaching PC, a document camera and video sources on one projector.
• Exhibitions and retail: run several media players or demo devices to a single display and change content on demand.
• Control rooms and monitoring: bring several computers or recorders onto one high-definition screen.
• Home theatre and gaming: connect Blu-ray players, streaming boxes, set-top boxes and consoles such as PS3 and PS4 to one TV.
• Hospitality and lounges: give hotel rooms, bars and waiting areas an easy way to switch between TV, streaming and signage sources.

5 Port HDMI Switch Specifications

Getting the Best Picture from Your 5 Port HDMI Switch

For 4K sources, use good-quality high-speed HDMI cables and keep them within the rated distances. That’s up to 10 metres from each source into the switch, and up to 5 metres from the switch to the display. At 4K 60Hz the switch uses YUV 4:2:0 colour, the format most 4K TVs and players use for video playback. If a source shows no picture, set its output to 4K 30Hz or 1080p and try again. Place the unit where the IR remote has a clear line of sight. To learn more about the standards involved, see these overviews of HDMI and chroma subsampling (YUV 4:2:0).

Installation Tips

1. Connect each source device to one of the five HDMI inputs.
2. Connect the HDMI output to your display, projector or AV receiver.
3. Plug in the DC 5V power adapter.
4. Turn on the display and your sources, then select an input with the remote or the button.
5. Label each input so users can find the right source quickly.

Buy the 5 Port HDMI Switch in Dubai from BAM

Bait Almajara Trading (BAM) supplies connectivity, power and AV accessories to system integrators, contractors, facility managers and corporate procurement teams across the UAE, GCC, Africa and Central Asia. Order the DTECH DT-7451 5 port HDMI switch for a single room or a full office roll-out, with trade pricing on volume and fast dispatch from our Dubai stock. Controlling displays over serial too? See our range of RS232 splitters. Explore more connectivity products and AV accessories at BAM, or contact our team for a project quote.

Frequently Asked Questions

What is the difference between an HDMI switch and an HDMI splitter?

An HDMI switch connects several sources to one display and lets you choose which one is shown. A splitter does the opposite and sends one source to several displays. The DT-7451 is a 5 port HDMI switch: five inputs, one output.

Does the 5 port HDMI switch support 4K?

Yes. It supports 3840 x 2160 at 60Hz in YUV 4:2:0, and works with lower resolutions such as 1080p and 720p.

Does it need power?

Yes. It runs on DC 5V, 1A, and the power adapter is included in the box.

Can I switch inputs remotely?

Yes. An IR remote control is included, and you can also switch using the button on the unit.

Does it work with PS4 and other games consoles?

Yes. It works with PS3, PS4, Blu-ray players, streaming boxes and other HDMI sources.
