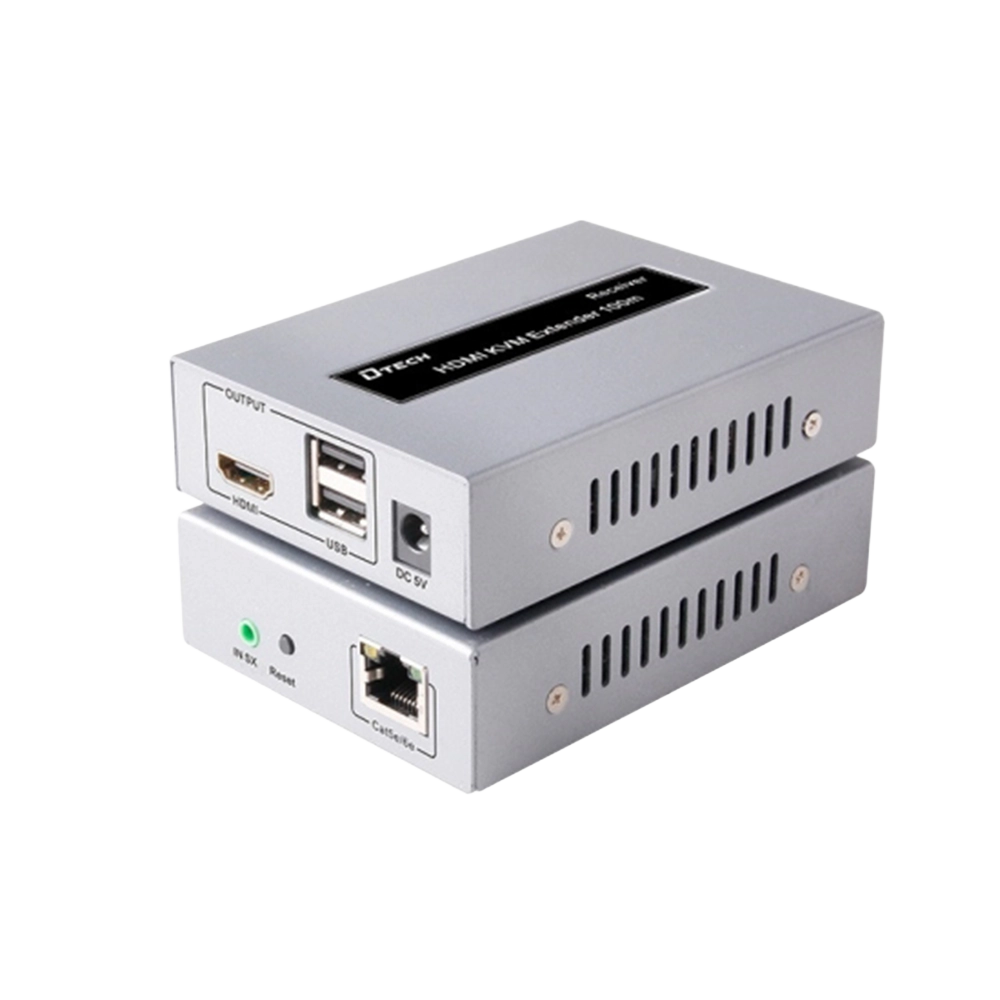

DTECH HDMI USB KVM Extender 100M with IR, 1080P@60Hz HDMI Over Cat5e/Cat6, Keyboard Mouse Remote Control DT-7054A

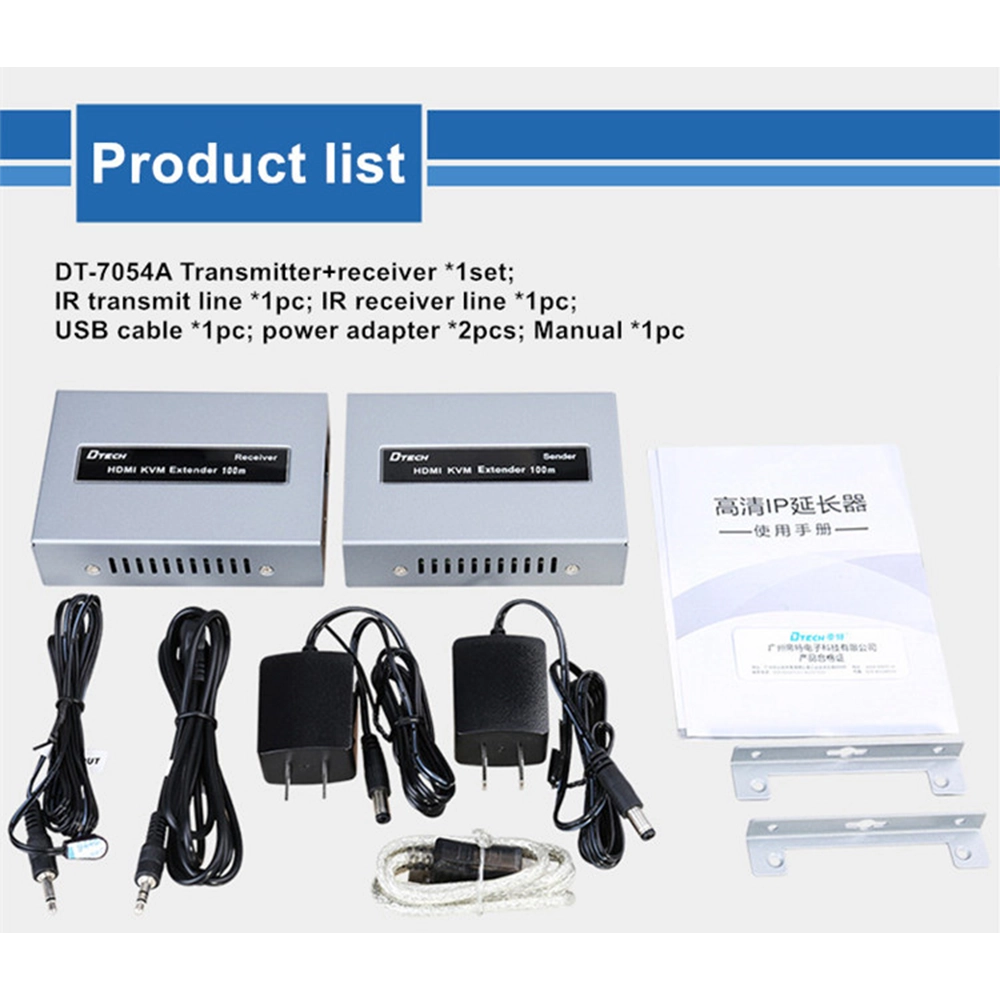

The DTECH DT-7054A is a professional HDMI USB KVM Extender 100M that transmits Full HD 1080p@60Hz video alongside full keyboard and mouse control over a single Cat5e or Cat6 cable. With built-in IR remote support and ESD protection, it is the complete solution for IT professionals, AV installers, and system integrators across the UAE who need to operate computer equipment from up to 100 metres away. Transmitter and receiver are included.

What Is an HDMI USB KVM Extender 100M?

A standard HDMI extender carries video over Cat6 cabling, but a KVM extender — Keyboard, Video, Mouse — goes further. It sends keyboard and mouse signals alongside the video, letting an operator at the display end fully control the connected computer as if sitting directly in front of it. The DT-7054A is an HDMI USB KVM Extender 100M that does exactly this, over 100 metres of Cat5e or Cat6 network cable.

This is the critical difference from a standard HDMI extender: with the DT-7054A, a technician in a control room can not only view a remote server’s screen — they can operate it. Log in, open applications, adjust settings, manage files — all from 100 metres away with no VPN or remote desktop software required.

Key Features of the DT-7054A HDMI USB KVM Extender 100M

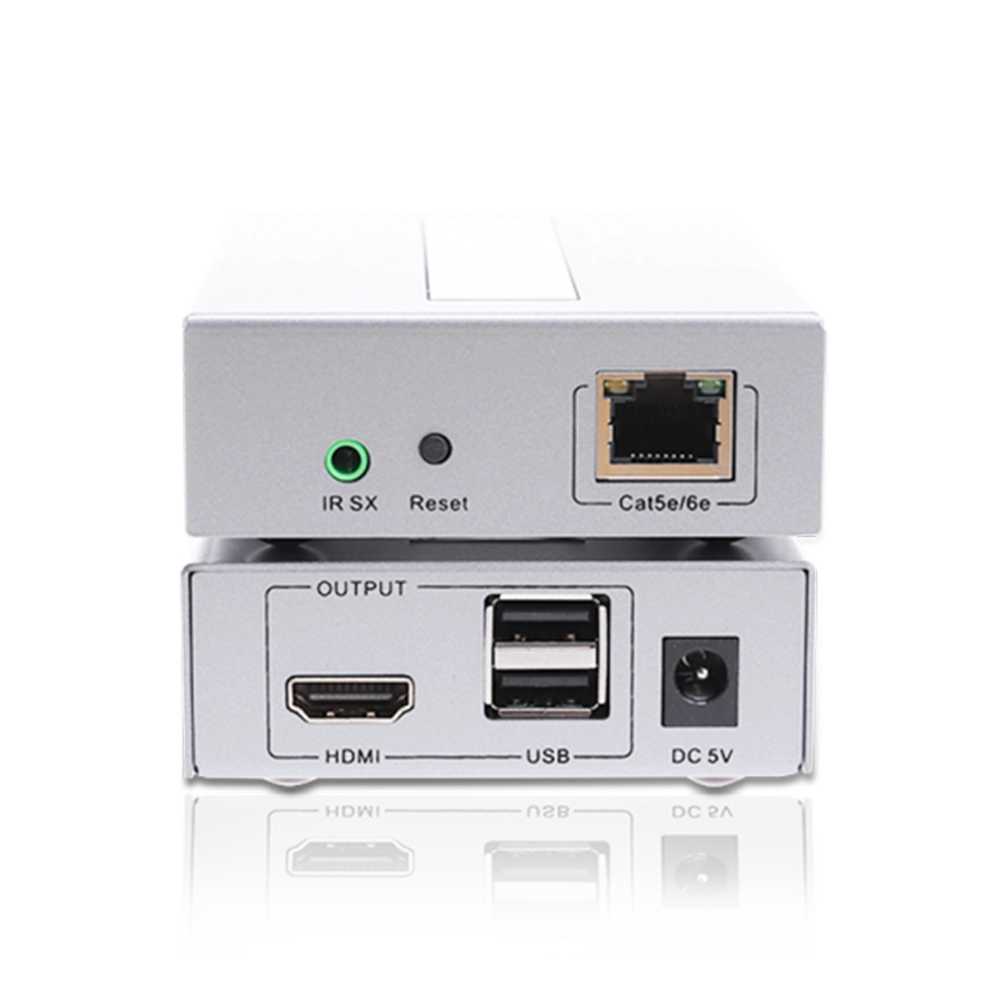

Full KVM — Keyboard and Mouse at 100M Two USB ports on the receiver let you connect a keyboard and mouse. Inputs are relayed to the source device over the Cat5e/6 cable in real time, giving complete control of a remote computer, DVR, NVR, or media player from the display end. No network access or software needed.

1080p@60Hz Full HD Video Transmits 1920×1080@60Hz Full HD video cleanly over the complete 100-metre distance. Compatible with any HDMI source: PC, laptop, server, DVR, NVR, media player, set-top box, or gaming console.

IR Remote Control Function The built-in IR return lets you control source equipment with a remote from the receiver end — useful for set-top boxes, Blu-ray players, and media sources that respond to IR commands.

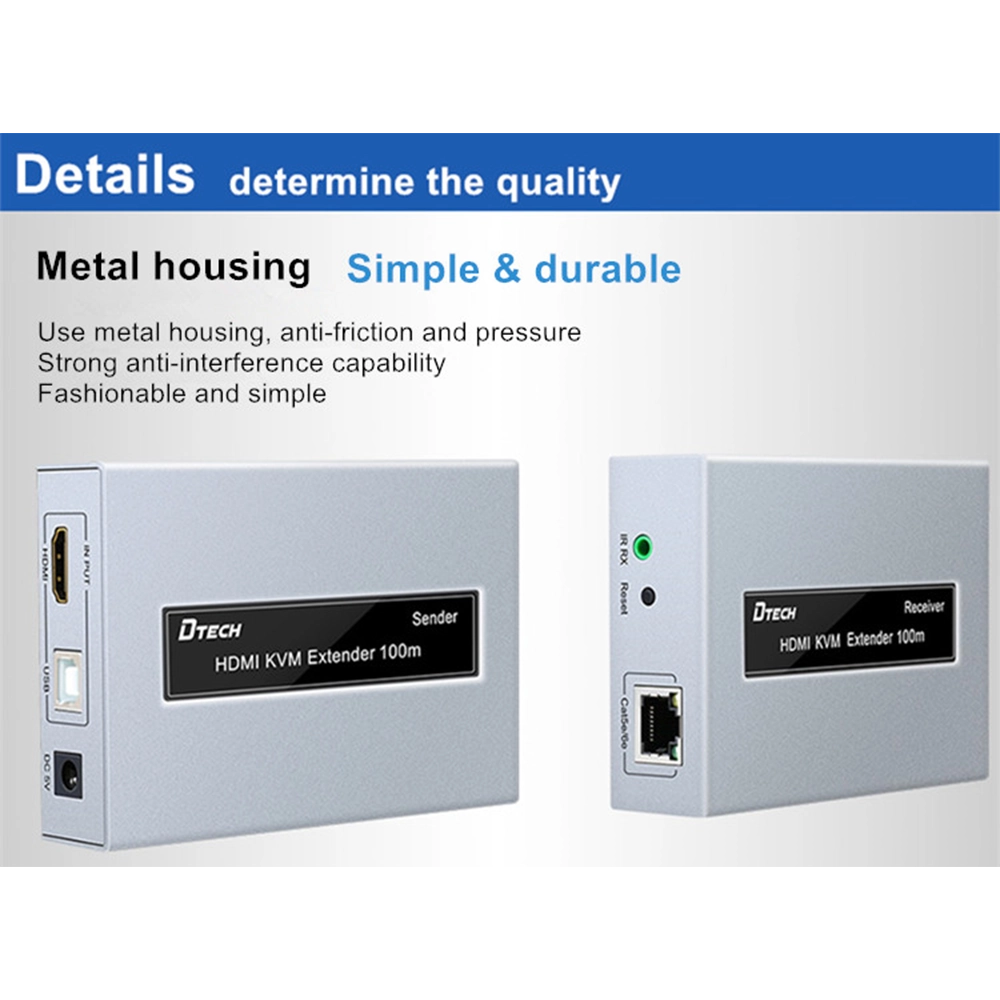

Built-In ESD Protection Electrostatic discharge (ESD) protection provides more stable, durable performance in professional IT, AV, security, and industrial environments where equipment is frequently connected and disconnected. This is a feature not found on entry-level HDMI extenders.

Cat5e and Cat6 Compatible Uses existing Cat5e or Cat6 structured cabling — standard in commercial buildings across the UAE. No new cable infrastructure required.

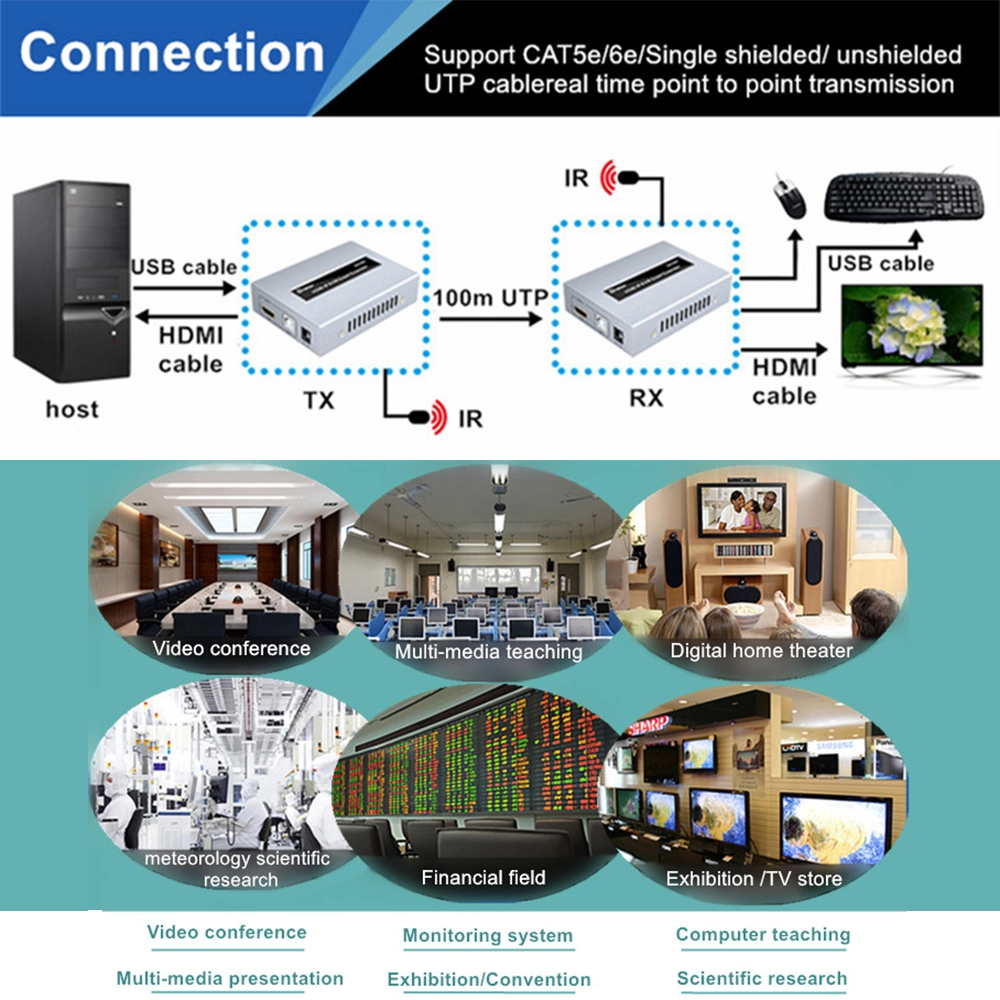

Plug-and-Play — No Drivers Connect the TX to the source, run the Cat5e/6 cable, connect the RX with keyboard, mouse, and display attached — and the system is live immediately. No software, no configuration, no IT setup.

Where the HDMI USB KVM Extender 100M Is Used in the UAE

The DT-7054A is deployed across a wide range of professional installations:

• Server rooms and data centres — operate rack-mounted servers from a separate control room without VNC, RDP, or network access. Physical KVM control even when the OS is unresponsive.
• CCTV and security control rooms — control DVR and NVR systems at the camera end from a monitoring desk, with full keyboard and mouse access over the same cable that carries the video feed.
• Computer labs and classrooms — teacher controls a demonstration PC from a control station anywhere in the room, with students watching on a shared display.
• Conference rooms and auditoriums — presenter operates the source PC from the podium or lectern over 100 metres of in-wall cabling, keeping the equipment room locked and secure.
• Exhibitions and showrooms — operator updates display content on a media player from a back-office workstation without entering the exhibit area.
• Manufacturing and industrial facilities — control industrial PCs or HMI terminals from a protected, climate-controlled control room away from the production floor.

Technical Specifications

Frequently Asked Questions

How is the DT-7054A different from a regular HDMI extender? A regular HDMI extender carries video only. The DT-7054A is an HDMI USB KVM Extender 100M — it adds full keyboard and mouse control so you can operate the remote computer from the display end. For 100m video-only extension without KVM, the DTECH DT-7078 POC HDMI Extender 100m is a lower-cost option at AED 255.

Does it work over live network cabling? No — the Cat5e/6 cable must be dedicated to this extender. It uses the cable’s twisted pairs to carry video and USB signals simultaneously, not Ethernet data.

What if I only need 60m range? For 60m with IR return and no KVM requirement, the DTECH DT-7053MS HDMI Extender 60m costs less at AED 185. Browse the full Video Extender range or contact us to confirm the right model for your installation.

For full technical documentation, visit the official DTECH KVM Extender range.
